Diameter Of Screw Shaft Is 400mm Rendering Plant Machinery
Our Machine's Introduction:
Our poultry waste rendering process line machine owns the characters as followed:
Full-automatic control, instant handling speed, thorough sterilizing effect, scientific and environmentally protective process,100% free from extraneous odor and no second pollution. The output material will bring high profit both in the society and economy. It’s the most popular and approved handling style internationally.

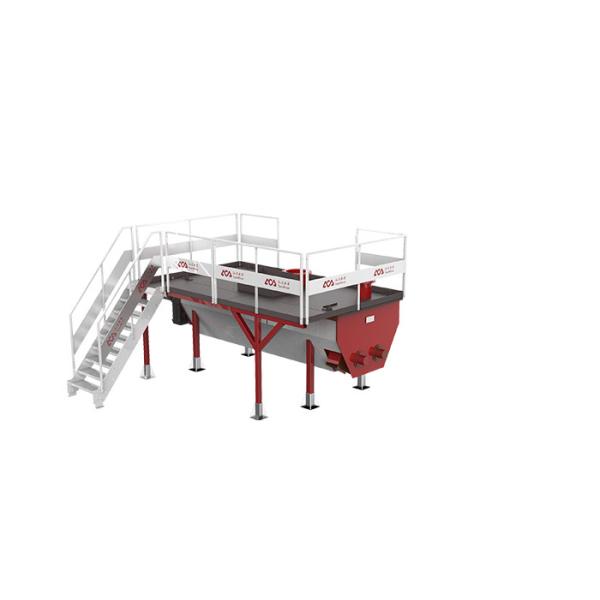

The receiving bin produced by Jiangsu SunRise is used to temporarily store the materials from the cooking and drying tank, and transport the materials to the screw conveyor through the screw conveyor at the bottom of the receiving box.
Flat-bottomed silos refer to large warehouses or other storage places with flat bottoms. The disadvantages are poor moisture resistance and poor drainage. Place advantage Flat-bottomed silo is very easy to install and move. The silo with transportation function and storage of cement is very easy to load, transport and unload by truck, trailer or flat-bottom boat, and is placed by its four independent expandable hydraulic legs. In a flat place.
The receiving chamber adopts reverse spiral design, and the closed ends of the blades are closed. The materials are circulated and transported in the warehouse to ensure that material accumulation does not occur, and the conveying precision and efficiency are improved. The steam jacket and insulation layer are designed at the bottom of the receiving chamber to maintain the temperature of the material therein to avoid solidification of the material due to temperature drop.
| designed volume | 10m³； |
| Diameter of screw shaft | 400mm |
| Quantity of screw shaft | 2.Pcs |
| The main body material | carbon steel |
| Design steam jacket and insulation layer Insulation material | 50mm rock wool+0.7mm stainless steel drawing plate |
| Motor power | 2*4kw |
| Motor brand | Simens |
| Reducer brand | JIE |
| shaft brand | SKF |
| The main body material | carbon steel |
